KM Radius Map

Draw a circle of any distance in kilometers. Enter an address or use your location and see the area within X km.

By Marko Visic · Last reviewed 16 November 2026

Draw a circle of any distance in kilometers

You're in the right place to draw a radius in kilometers. Search an address or tap “use my location,” set the distance to 1, 5, 10, 50, or 100 km, and the circle appears instantly, showing everything within that many kilometers of the point. Drag the edge to resize it, or type an exact value. The tool above already defaults to kilometers, so there is nothing to switch.

People reach for a kilometer radius for everyday questions: what's within 10 km of my house, how far a 5 km run or ride reaches, the delivery or service zone around a shop, which suburbs sit inside a 15 km commute, or how close a rental is to a station. Kilometers are the natural unit for most of the world, and for runners, cyclists, and students anywhere, so this page keeps km as the default rather than an afterthought.

How to draw a 10 km radius

Search for your address (or use your current location), make sure the unit is set to km, and enter 10 for the radius. The 10 km circle is drawn from that point in every direction, a common size for “within 10 km of me” checks, catchment areas, and city-scale coverage. Swap in any value to draw a 1, 5, 10, 50, or 100 km circle.

What's within X km of my location

Tap the locate button to center the map on where you are, then set the distance to see what falls within that many kilometers: shops, stations, parks, or anywhere inside the circle. The location lookup happens in your browser; nothing is sent to our servers. For travel time instead of straight-line distance, see the drive-time map or walking radius map. Prefer miles? On a phone, the km/mi toggle turns a 10 km circle into 6.2 mi and keeps its size; on a computer, the unit menu keeps the number you typed and redraws the circle in miles.

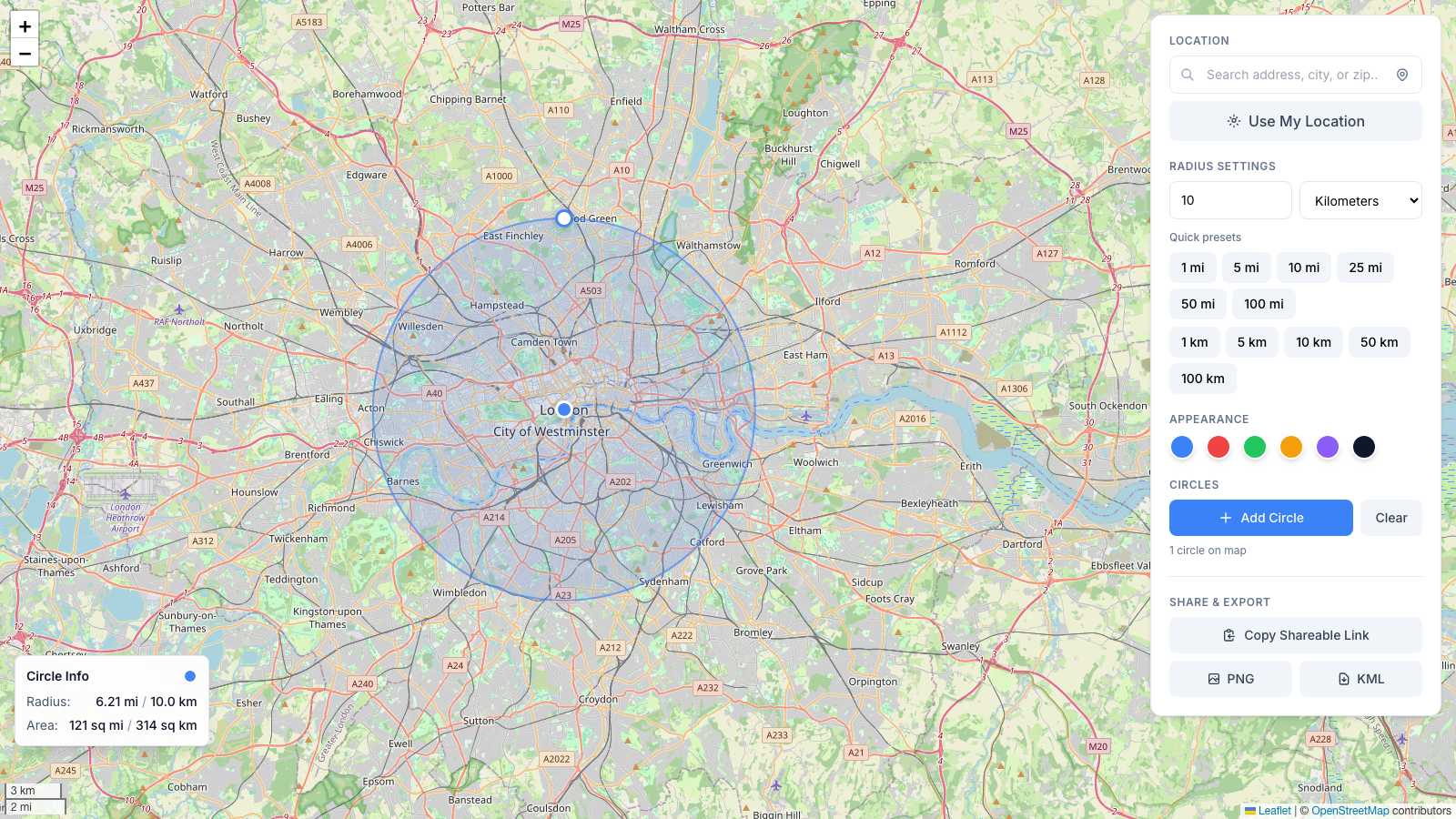

Map of a 10-kilometer radius around central London
A 10-kilometer radius centered on London, drawn with the km radius map tool above. · Map data © OpenStreetMap contributors

How Far Is That? Travel-Time Context

A kilometer radius is straight-line (“as the crow flies”) distance, not travel time, and how long a given distance takes to cover depends entirely on mode, terrain, traffic, and route. A radius tool can't know any of that, so it deliberately doesn't estimate minutes.

For actual travel-time analysis that accounts for the road and path network, use our drive time map or walking radius map, which compute real isochrones from a routing engine rather than a flat average speed.

Converting KM to Miles

If you need to communicate distances with US or UK colleagues, multiply kilometers by 0.62 to get miles, or divide by 1.6.

1 km
≈ 0.62 mi
5 km
≈ 3.1 mi
10 km
≈ 6.2 mi
100 km
≈ 62 mi

Advanced & technical reference

The rest of this page is deeper reference material for regulatory, planning, and GIS work in kilometers: how metric jurisdictions define radii, worked examples from public policy, common measurement mistakes, and the coordinate standards for moving a radius into professional GIS. Most people can stop here; keep reading if you need the technical detail.

How regulatory radii are defined in metric systems

Rules are written around round numbers in their own unit. Emergency planning around nuclear power plants shows it: US rules set a plume exposure zone of about 10 miles and an ingestion zone of about 50 miles, while Japan's guidelines set a precautionary zone of about 5 km and a planning zone of about 30 km. Draw a metric rule in kilometers: a 30 km zone is a 30 km circle, and converting it to 18.6 mi and rounding up to 20 mi draws a circle 7% too wide.

There's also a definitional gap worth flagging. “Within 10 km” in a regulation can mean any of three things:

  • Straight-line distance: the great-circle distance a radius tool draws. The EU's flight-compensation bands use it (example 4 below).
  • Road distance: distance along the road network. Germany's commuter tax allowance, for example, counts the shortest road connection between home and work.
  • Travel time (often phrased as “within 15 minutes”): the 15-minute city (example 2) measures access this way, and its true shape is an isochrone rather than a circle.

The tool above draws straight-line radii. For road distance, the distance calculator also returns the driving distance from OSRM; for travel time, use the isochrone tools linked above. Pick the right measurement type before you start sketching a regulatory polygon on the map.

Field guide: worked examples

Concrete cases where a kilometer radius is the right tool, drawn from public regulation and planning documents. Each example notes the radius value, what defines it, and which gotchas to watch for when you sketch it on the tool above.

1. German Umweltzone: planning a Low Emission Zone

Germany's air-quality framework, implementing the EU Ambient Air Quality Directive (2008/50/EC), lets cities declare Umweltzonen, Low Emission Zones where older vehicles can't drive. Berlin's zone is the area inside the S-Bahn ring: about 88 km², home to more than 1 million of the city's 3.7 million residents. A circle with the same area has a radius of about 5.3 km, so a 5.3 km radius from the center is a quick first sketch of a zone that size, before you trace the ring as a polygon.

Radius used: about 5.3 km from the center (the circle with the zone's area), refined to a polygon. Gotcha: the regulation is enforced on a polygon, but the radius is the planning shortcut. Don't conflate them.

2. Carlos Moreno's 15-minute city as a 1.2 km screen

Carlos Moreno proposed the 15-minute city in 2016: daily essentials such as work, shops, health care, schools and leisure within 15 minutes on foot or by bike. The rigorous check uses walking isochrones; a quick screen uses a straight-line radius of 1.2 km, which is 15 minutes at 80 m a minute (about 4.8 km/h, the pace Japanese property listings must use, example 3). For a city-wide check, screen with the radius first, then run walking isochrones only where the screen passes.

Radius used: 1.2 km Euclidean (screening) → walking isochrone (refinement). Gotcha: the radius will over-count in cities with rivers, freeways, or steep grade. Fine for screening, wrong for delivery of services.

3. Japanese station-walking radius for property listings

Japanese real-estate listings quote “駅徒歩X分” (X-minute walk to station) at the 80 m-per-minute pace set by the Fair Competition Code for Real Estate Representation (road distance, rounded up to the next minute), so 5 minutes is 400 m, 10 minutes is 800 m. Road distance is never shorter than the straight line, so a 400 m or 800 m radius around a station is the outer limit for a 5- or 10-minute listing: every such home lies inside it.

Radius used: 400 m and 800 m around each station. Gotcha: the rule counts road distance only, so waits at crossings, slopes and stairs are not in the minute count, and the real walk can take longer.

4. EU flight-compensation distances

Under the EU's air passenger rights regulation (EC 261/2004), compensation for a canceled or long-delayed flight depends on distance: €250 for flights of 1,500 km or less, €400 for longer flights within the EU and for other flights of 1,500–3,500 km, and €600 for the rest. Article 7(4) says the distances are measured by the great circle route method, the same straight-line measure the tool above draws, and the EU Court of Justice ruled in 2017 (Bossen, C-559/16) that it is the great-circle distance from the first departure to the final destination, whatever distance was actually flown.

Radius used: 1,500 km and 3,500 km great-circle from the departure airport. Gotcha: the band follows the great-circle distance, not the airline's flown kilometers, so check a route against the circle, not the timetable. Regulation (EC) 261/2004 on EUR-Lex

Common kilometer-radius mistakes

Six mistakes to avoid when you sketch a metric radius:

  1. Confusing km with km². A 10 km radius covers 314 km² (π·r²), not 10 km². When a regulation says “within a 10 km area,” check whether it means a 10 km radius (the common reading) or a 10 km² area (a much smaller circle of radius ≈ 1.78 km).
  2. Confusing radius with diameter. “A 10 km zone” can mean a 10 km radius or a 10 km diameter (a 5 km radius), and the radius reading covers four times the area. Check whether the source measures center to edge or edge to edge.
  3. Straight-line vs road distance. A straight-line radius crosses rivers, bays and rail lines that roads have to go around, so road distance is never shorter than the radius and can be much longer where crossings are few. For rules that measure access by road, a circle overstates the area.
  4. Latitude distortion on Web Mercator. The map uses the Web Mercator projection, which enlarges everything by 1/cos(latitude). A 50 km circle in Stockholm is drawn about twice as wide as a 50 km circle in Nairobi, though both cover the same ground. The radius value is correct; the on-screen size is not a fair comparison.
  5. Earth oblateness. Haversine assumes a perfectly spherical Earth. Against the WGS 84 ellipsoid its distances run up to about 0.56% long (north–south lines near the equator) or 0.44% short (east–west lines near the poles), and the share is the same at 10 km as at 1,000 km: up to 56 m on a 10 km radius. For aviation, maritime, or survey work, use an ellipsoidal (geodesic) method such as Karney's or Vincenty's.
  6. Edge-case rounding. If a regulation says “within 5 km,” is 5.0001 km inside or outside? The answer is in the rule's wording (“within”, “less than”, “not more than”), so check it before deciding a marginal case.

GIS standards: WGS 84, EPSG codes, and INSPIRE

Three standards govern how kilometer-radius work moves between consumer tools and professional GIS pipelines:

  • WGS 84 (EPSG:4326): the coordinate system OpenStreetMap stores its data in and most GPS units report. The latitudes and longitudes this tool shows and exports are WGS 84.
  • ETRS89 (EPSG:4258): the European Terrestrial Reference System, the datum INSPIRE requires for European data (next item). ETRS89 is fixed to the stable part of the Eurasian plate, so it and WGS 84 drift apart by about 2.5 cm a year: close enough to swap for everyday mapping, but survey work needs to track which datum each layer is in.
  • INSPIRE Directive (2007/2/EC): sets how EU public bodies share spatial data, and its rules require ETRS89 coordinates for areas within ETRS89's scope. KML from this tool is in WGS 84, so transform it to ETRS89 before it goes into an INSPIRE dataset.
  • Country-specific national grids: UK Ordnance Survey (OSGB36 / EPSG:27700), French Lambert-93 (EPSG:2154), German Gauß-Krüger (EPSG:31466–31469), Japan Plane Rectangular (EPSG:6669–6687). These are projected coordinate systems used for national cartography. Convert between them and WGS 84 in QGIS or proj4 before doing radius calculations on data that arrived in a national grid.

In practice: the radii you draw here can be exported as KML and dropped directly into QGIS, ArcGIS, Google Earth, or any tool that reads WGS 84. If your data arrives in a national grid, transform it to WGS 84 first; the radius math doesn't care about the projection but the visual overlay does.

Methodology and sources

The figures on this page come from the laws, guidelines and standards below, so you can check each one against the primary document rather than this page's summary.

  • Berlin Senate administration, Umweltzone area: inside the S-Bahn ring, about 88 km², more than 1 million of 3.7 million residents. The 5.3 km is the radius of a circle with that area.
  • EU Ambient Air Quality Directive 2008/50/EC: underlying framework for German Umweltzonen and similar national Low Emission Zones.
  • US Nuclear Regulatory Commission, emergency planning zones: about 10 miles (plume exposure) and about 50 miles (ingestion).
  • Cabinet Office of Japan, nuclear emergency FAQ: under the Nuclear Regulation Authority's guidelines, a PAZ of about 5 km and a UPZ of about 30 km.
  • German Income Tax Act, § 9(1) no. 4: the commuter allowance counts the shortest road connection between home and work.
  • Regulation (EC) No 261/2004, Article 7: the 1,500 km and 3,500 km compensation bands and the great circle route method; EU Court of Justice, Bossen and Others (C-559/16, 2017).
  • Real Estate Fair Trade Council (Japan), Fair Competition Code for Real Estate Representation and its enforcement rules (rule 9, item 9): walking time at 80 m of road distance per minute, with part minutes rounded up, used in 駅徒歩 listings.
  • Moreno and others, “Introducing the 15-Minute City” (Smart Cities, 2021): the concept, proposed by Carlos Moreno in 2016.
  • EUREF, Technical Note 1: ETRS89 is fixed to the stable part of the Eurasian plate. The 2.5 cm a year is our calculation from its ETRF2020 rotation rates, which give 2.3 to 2.7 cm a year for capitals from Lisbon to Athens; WGS 84 is aligned to the ITRF within 1 cm, per NGA.
  • INSPIRE coordinate reference systems specification: ETRS89 as the datum within its geographical scope.
  • OpenStreetMap wiki: OpenStreetMap uses WGS 84, as do most GPS units.
  • IOGP / EPSG Geodetic Parameter Registry: authoritative source for coordinate reference system codes used in the GIS standards section.

All radius calculations on this site use the Haversine formula on a spherical Earth approximation. The 0.56% and 0.44% figures above come from our comparison of it with the WGS 84 geodesic for lines of 10 to 3,000 km at every 5° of latitude and bearing (Vincenty's direct formula). For exact ellipsoidal calculations, a GIS pipeline like QGIS or PROJ is required.

Frequently Asked Questions

Can I embed this tool in a European website? Is it GDPR compliant?
Yes, with the /embed endpoint, which loads no analytics or advertising scripts. The map tiles come from OpenStreetMap's tile servers and a search inside the embed goes to Nominatim, so a visitor's browser contacts those OpenStreetMap services directly and they see its IP address; whether that fits your privacy notice is for you to decide, and this is not legal advice. No user data reaches Google when the embedded map loads. URL-encoded coordinates and radius let you point users at specific map configurations. The main mapwithradius.com site runs Google Analytics 4 and display advertising served through Raptive; in the EEA, UK and Switzerland, Google Consent Mode v2 keeps non-essential cookies default-denied until consent, and the /embed view does not inherit any of these scripts.
Does address search work outside the US?
Yes. Search runs on OpenStreetMap data, which covers the whole world: suggestions as you type come from Photon, and pressing Enter searches Nominatim. You can type a place name in its local language or script, such as German, Japanese or Arabic, as long as OpenStreetMap has that name.
How accurate is a kilometer radius over long distances?
Distances here use the Haversine formula on a spherical Earth, which against the WGS 84 ellipsoid runs up to about 0.56% long or 0.44% short at any range: at most 56 m on a 10 km radius, or 5.6 km on a 1,000 km one. The circle on screen also grows with latitude, because Web Mercator enlarges the map by 1/cos(latitude), but the distance is the same in every direction. For aviation, maritime or survey work, use an ellipsoidal (geodesic) tool.
Can I use this for COVID lockdown radius checks?
Yes, when the rule is a straight-line distance from home: enter your address and the limit, and the circle shows the area inside it. Check the wording first, because some limits were set by road distance or by district boundaries instead.
Does the tool work in countries with slow internet or mobile data?
Yes. The map downloads as small square tiles, so it fills in piece by piece on a slow connection instead of waiting for one large image. Once it has loaded, drawing and resizing the circle is computed in your browser, so it doesn't wait on the network.
Can I export the circle for use in local GIS software?
Yes. The KML export opens in Google Earth, QGIS and ArcGIS, and the PNG export is a flat image for reports or slides. KML coordinates are WGS 84 longitude and latitude, the datum the KML format uses; if your project is in ETRS89 or a national grid, transform the layer after you import it (see the GIS standards above).
Can I switch between km and miles without losing my circle?
Yes. On a phone, the km/mi toggle converts the radius, so a 10 km circle becomes 6.2 miles and stays the same size on the map. On a computer, the unit menu keeps the number you typed and redraws the circle in the new unit, so type 6.2 after switching to miles if you want the same circle. Either way the circle keeps its center, which is handy for sharing maps with US or UK colleagues without recreating the search.
Why does my circle look oval-shaped when I zoom out?
On this map a circle stays close to round: each one is drawn as an ellipse fitted to the map at its center, so even a 2,000 km circle around Paris is only about 4% taller than wide. What changes is size: Web Mercator enlarges the map by 1/cos(latitude), so the same circle is drawn twice as wide at 60° north as at the equator. The distance it shows is the same in every direction.
